Prism Sound Atlas 8-in/8-out Audio Interface

Reference Grade Expandable Production Interface
8 input channels and 8 output channels
8 microphone preamplifiers and 2 Hi-Z instrument inputs
Dedicated stereo analogue headphone outputs
Prism Sound’s unique pedigree of conversion, analogue, clocking and
signal processing to the DAW user in an integrated package, with the plug-and-play convenience of an ordinary USB sound card.
Fully-featured mixer for each output channel pair (including digital, ADAT and headphones) to deal with low-latency requirements in live sound and over-dubbing.
Overkiller, a soft-cap limiter gently absorbs transients and allows signal levels to be pushed to their limits without risk.
Impact Filter, a high-pass filter which roll off below 80Hz which is useful in mic input mode in removing unwanted low-frequency content.
RIAA de-emphasis filter in analogue inputs 1 and 2 to allow direct connection of a vinyl deck
Expansion slots for additional host interface such as MDIO-PTHDX (allowing connection as I/O units for Avid | ProTools | HDX and HD Native interfaces) and MDIO-Dante (allowing connection to Dante audio-over-IP networks)
Prism Sound’s unique Verifile process

Dimensions (W x D x H):  440 x 290 x 95mm
Weight: 5 kg

System requirements and Specs:
Mac OS X 10.5 Leopard or later| Class-Compliant, Plug-and-play
Windows Vista, 7, 8, 10 or later (32-bit or 64-bit)| Install included ASIO/WDM and UAC2 driver

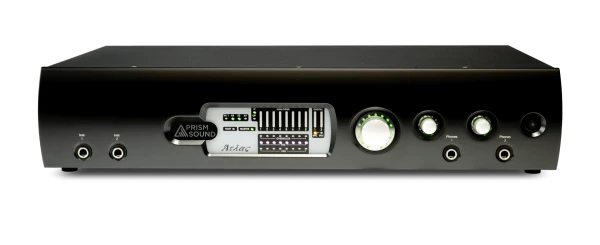

Front Connectors:
2 x Instrument Input (¼” Jack Connector)
2 x Headphone Output (¼” Jack Connector)

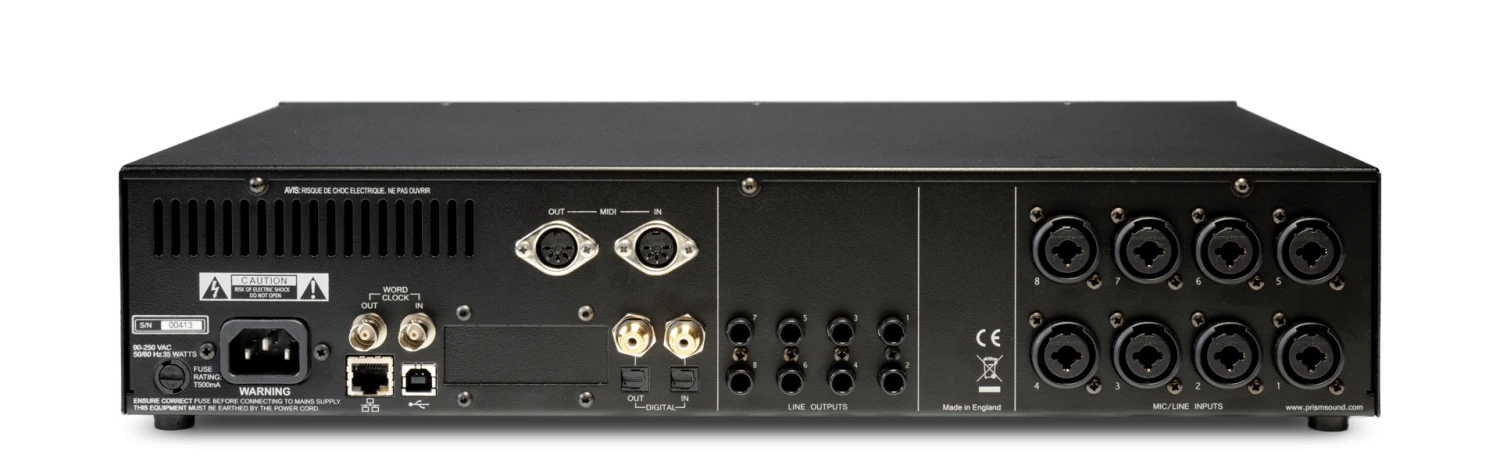

Rear Connectors:
8 x Mic/Line Hybrid Port (XLR/¼” Jack Connector)
8 x Line Output (¼” Jack Connector)
1 x S/PDIF / AES3 In/Out (RCA Connector)
1 x TOSLINK S/PDIF / ADAT In/Out (Optical Connector)
1 x MDIO Module Slot
1 x MIDI I/O (5-pin DIN connector)
1 x RJ45 Ethernet Port
1 x USB-B Port
1 x IEC Port
